Architects rarely get to choose between abundant natural light and true structural strength anymore. In fact, commercial architects now turn to translucent wall systems to deliver both qualities together. You gain a facade that performs like a wall while behaving like a window.
Every translucent wall system depends on decisions made long before installation day arrives. Panel thickness, chamber design, and framing tolerances all shape how light travels through material. Understanding that engineering process helps you specify a system built for your unique project.
What Are Translucent Wall Systems and How Do They Work
Specifically, a translucent wall system uses layered polycarbonate panels set inside an aluminum frame. Internal chambers diffuse sunlight evenly while the frame provides structural support and weatherproofing. Together, these components create a wall that lights a space without sacrificing durability.
Engineering the Translucent Wall System Structure
Multi-wall polycarbonate panels rely on internal ribs that separate several parallel material layers. In turn, internal ribs trap air pockets, which slow heat transfer between exterior and interior surfaces. As a result, better insulation performance lowers heating and cooling loads across the building envelope.
According to Building Enclosure magazine, insulation values also favor translucent systems over double-pane insulated glass units. Panel thickness ranges widely depending on climate, span, and desired light transmission levels. However, thicker panels reduce transmission slightly while adding strength for wide spans and high winds. Engineers balance these two priorities carefully during the specification phase of any project.
- Chamber count affects both insulation value and structural rigidity of the panel
- Panel width determines how many vertical seams a wall elevation requires
- UV-protective layers shield the polycarbonate core from long-term sun exposure
Aluminum framing ties every panel into one complete, weather-tight translucent wall system overall. Extrusions hold panels under compression while allowing thermal expansion and contraction to occur.
Notably, framing details also determine how weathertight seals perform across years of sun and rain. You can explore wall panel options to compare framing and panel choices available today. Quality control checks each seam before panels leave the manufacturing facility for shipment.
Balancing Light Transmission and Structural Load
Light transmission and structural load often pull engineering decisions in two opposite directions. In turn, a panel optimized purely for brightness sacrifices some wind and impact resistance. Designers must weigh both factors against your local building code and site conditions.
Wind load calculations determine how framing spacing and anchor points get placed across a wall. Because of this, coastal and high-rise projects often need tighter spacing to meet code requirements.
According to e-architect, polycarbonate's high impact strength makes it a common choice for security glazing and protective cladding.
Thermal movement also plays a role in how translucent wall systems perform over time. Polycarbonate expands and contracts more than aluminum or glass across seasonal temperature swings. Overall, framing details must accommodate that movement without cracking seals or panel joints.
Engineering teams model wind pressure data carefully before finalizing any panel layout decisions. For instance, coastal warehouses often require reinforced anchor points along every panel seam. Extech's engineering team reviews these calculations during the engineering phase of every project.
Customization Options for Modern Facades
Modern facades rarely settle for a single flat plane of translucent paneling anymore. Extech's custom design services let you shape curves, reveals, and mixed materials into one system. Custom aluminum framing also supports tinted, frosted, or patterned polycarbonate for brand-specific purposes.
Prefabrication speeds up delivery once your design moves into fabrication and quality control. In turn, panels arrive at the job site cut, sealed, and ready for installation. As a result, prefabrication shortens schedules compared to stick-built glazing systems assembled on site.
Color options extend beyond white or clear panels into bronze, gray, and custom tints. In fact, architects increasingly specify translucent wall systems for branding as much as daylighting.
Facility owners also value how customization supports long-term maintenance and easy cleaning needs. Smooth panel surfaces resist dirt buildup better than older fiberglass or acrylic materials. Moreover, replacement panels can match existing color and texture years after original installation.
Bring Better Daylighting With Translucent Wall Systems

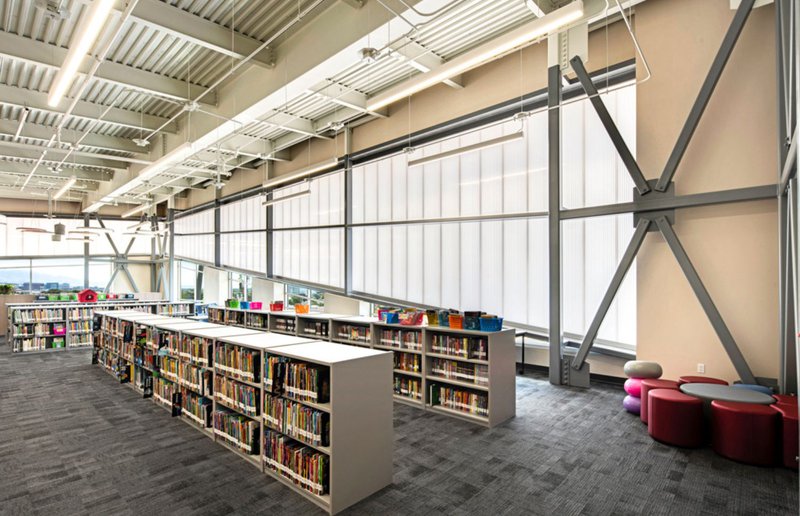

Translucent wall systems give you a way to engineer light instead of merely admitting it. You get insulation, impact resistance, and daylighting benefits from one prefabricated wall assembly. Extech's project gallery shows how architects apply these systems across schools and transit hubs.
Overall, every project brings different span, climate, and aesthetic requirements to the table. Our engineering team helps you match panel structure and framing to your building goals. Contact us today to start engineering your next translucent wall system the right way.
