LIGHTWALL 3000®

CURTAIN WALL SYSTEM

Design a brighter environment with our award winning LIGHTWALL 3000® curtain wall system. This system can be used as a traditional glass curtain wall system and can also accept polycarbonate and metal panels. Choose from the system’s multiple vertical mullions to meet your project’s specific requirements.

Polycarbonate hangar doors

UNIQUE FEATURES

  • Shallow vertical mullions can be placed directly onto the existing building's structure
  • Deep vertical mullions allow for large vertical panel spans
  • Thermally broken frames
  • Aluminum framing members overlap for superior air and water infiltration resistance
  • Optional aluminum snap caps provide a refined architectural appearance

GLAZING DETAILS

  • Accepts glass, polycarbonate, and metal panels up to 1" (25mm) thick
  • Deep glazing channels
  • Available in various colors and translucencies
  • Low friction gasketing and controlled gasket pressure

TYPICAL APPLICATIONS

  • Industrial retrofits or new builds
  • Schools
  • Office buildings
  • Recreational facilities
  • Government buildings
  • Aircraft hangars
  • Military buildings
  • Commercial buildings
  • And more

LIGHTWALL 3000® 3D scenes

* Click on ‘View 3D Scenes’ button to view additional 3D scenes.

View 3D Scenes

* Click on the icon above to view additional 3D scenes.

3000 CAD

3000 BIM

  • Air Infiltration: 0.024 cfm/sq. ft. at 6.24 psf per ASTM E-283-91
  • Water Resistance: No leakage at 15 psf per ASTM E-331-96
  • Structural: In accordance with ASTM E-330-97

3000 SPEC

3000 DETAIL

3000 BROCHURE

Leed Info

LIGHTWALL 3000® CASE STUDIES

Click an image to read more about our latest projects

LIGHTWALL 3000 Glass and Polycarbonate Facade

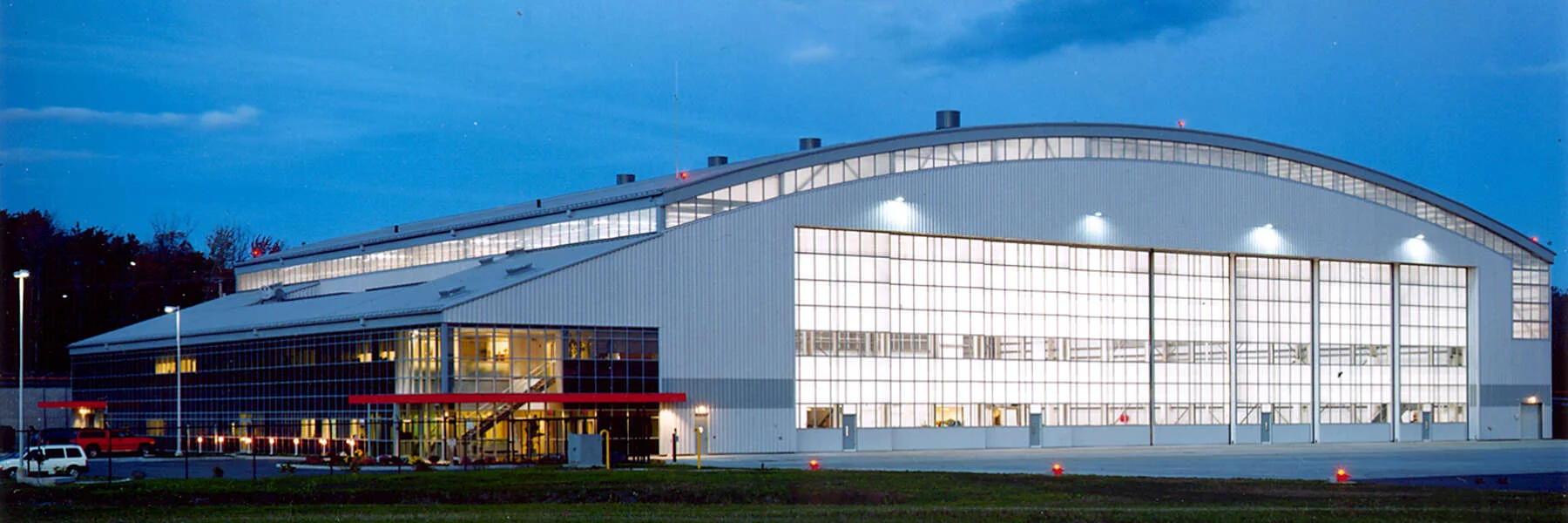

Case Study: General Electric Corporate Aviation Hangar

LIGHTWALL 3000 Otterbein University

Case Study: Otterbein University’s STEAM Innovation Center

LIGHTWALL 3000® GALLERY

Glass and Polycarbonate Curtain Wall System
LIGHTWALL 3000 Curtain Wall Otterbein University
LIGHTWALL 3000 Curtain Wall Otterbein University
LIGHTWALL 3000 Curtain Wall Otterbein University
LIGHTWALL 3000 Curtain Wall Otterbein University
LIGHTWALL 3000 Glass and Polycarbonate Facade
