LIGHTWALL 210®
DOUBLE WALL POLYCARBONATE WALL SYSTEM
The LIGHTWALL 210® is a dual wall system, providing a monolithic appearance unbroken by vertical framing members. This sleek system is capable of long spans and can incorporate different interior and exterior panel finishes for design flexibility.
System Benefits
Daylighting
Diffuses natural light deep into interior spaces
Thermal Performance
Double wall system for excellent insullation
Long Spanning
Vertical clamping mullion for long spans
Design Flexibility
Multiple colors, translucencies, and coatings
Durable Construction
UV-resistant polycarbonate and aluminum framing
EXPLORE THE SYSTEM
PANEL SYSTEM
• 10mm standing seam cellular polycarbonate panels
• Clear, opal, or various colors/translucencies available, with IR & AR options
• Can incorporate different interior and exterior panel colors and finishes
• Easy replacement of individual exterior glazing sheets without removing adjacent panels
• UV-resistant co-extruded layer
• Glazing gives monolithic appearance, unbroken by vertical framing members
Â
ALUMINUM FRAMING SYSTEM
• Double interior/exterior gaskets, with continuous double primary gaskets
• Thermally broken framing
• Deep rabbets for thermal expansion
• System is capable of long span high load conditions
• Vertical clamping mullion for long spanning applications
APPLICATIONS

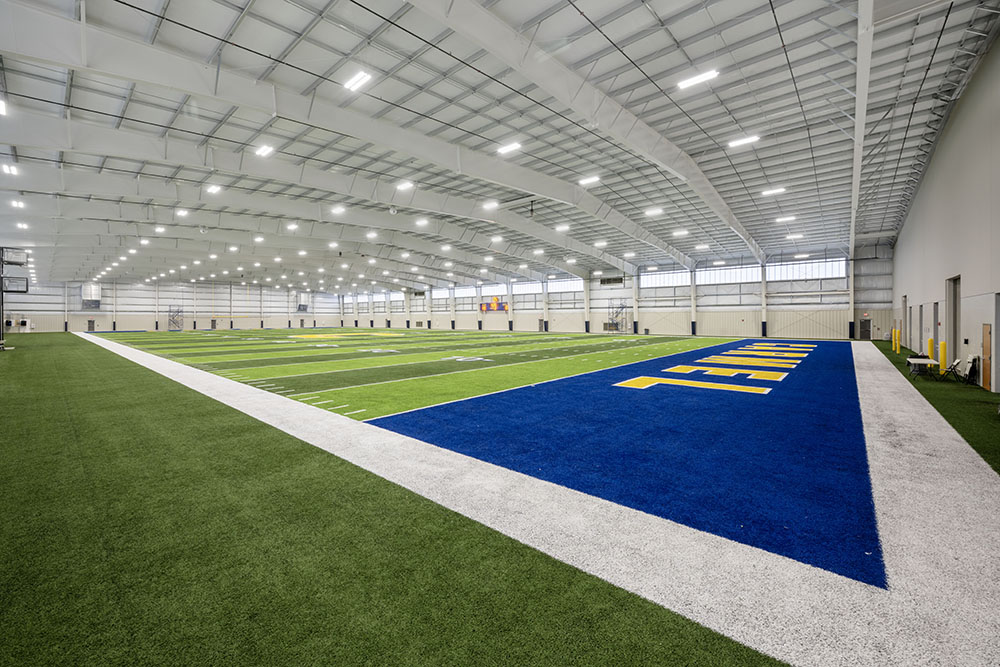

Adaptable to a range of building types. Below is a sample of common applications.
performance & design options
Glazing Panels
- 10mm, 4-wall standing seam cellular polycarbonate panels
- Nominal 24″ wide and are available in lengths up to 54′
Material & Glazing Options
Glazing Options:
- Class A option
- Infrared blocking & anti-reflective options
- Standard colors: Clear, opal, bronze, green with custom color options available
- Can incorporate different interior and exterior panel colors and finishes
Testing & Standards
- Interior Flame Spread: ASTM E-84
- Color Change: ASTM D-2244
- Yellowing Index: ASTM D-1925
- Air Infiltration: ASTM E-283
- Water Infiltration: ASTM E-331
- Load Bearing Capability: E-330
