Translucent Walls

LIGHTWALL 3440

TONGUE & GROOVE WALL SYSTEM

• Accepts 40mm or 50mm tongue & groove cellular polycarbonate glazing

• Structural polycarbonate panels are 500mm (19-11/16”) wide

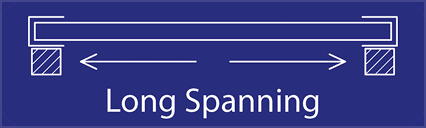

• Long-spanning panels

• Panels up to 54' tall for 40mm  and 36' for  50mm

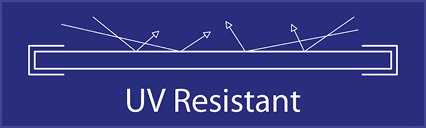

• UV resistant polycarbonate in a variety of colors and translucencies

LIGHTWALL 3000

CURTAIN WALL SYSTEM

• Accepts glass, cellular polycarbonate, and metal panels

• Multiple glazing types can be used within the system

• Overlapping framing used for incorporating non-structural glazing panels

• 16mm or 25mm cellular polycarbonate glazing can be used

• Accepts up to 1/4" glass

• UV resistant polycarbonate in a variety of colors and translucencies

LIGHTWALL 8000 (formerly 3100LS)

LONG SPANNING SCREEN SYSTEM

• Accepts 20mm standing seam polycarbonate panels

• Spans up to 39' high

• Vertical mullions are tightened to clamp standing seam legs together

• Available in multiple colors and translucencies
