Most industrial facilities treat ventilation and daylighting as two separate problems. Roof fans handle air quality. Skylights handle light. As a result, the building envelope fills up with competing systems, added cost, and extra maintenance. A well-designed industrial window changes that logic entirely.
A modern industrial window does more than fill an opening. It manages airflow, brings in natural light, handles weather exposure, and cuts dependence on mechanical systems. Getting all of that from one building element takes the right glazing material, thoughtful framing, and a system built for real industrial conditions.
What Sets an Industrial Window Apart
A standard commercial window works fine in moderate, controlled environments. An industrial window, however, operates under very different stress.
Facilities like warehouses, rail yards, and manufacturing plants place heavy demands on glazing systems:
- Wide thermal swings from internal heat and outdoor weather
- Corrosive particles from industrial processes
- Impact risk from equipment or airborne debris
- Large bay spans that require long, continuous glazing runs
- Continuous operation with little tolerance for downtime or repairs
An industrial window must handle all of these while still admitting useful daylight and supporting active ventilation. Those competing demands shape every material and detailing decision on the project.
Why Ventilation and Industrial Windows Work Better Together
Natural ventilation in large industrial buildings relies on stack effect. Heat rises, pulls fresh air in from lower openings, and exits through vents higher on the wall. An industrial window placed high on a sidewall or along a clerestory line can serve both roles at once: it admits daylight and opens to exhaust heat or fumes.
This dual function reduces the load on HVAC and mechanical exhaust systems. It also puts natural light exactly where workers need it. According to the U.S. Department of Energy, daylighting strategies that replace or reduce artificial lighting can significantly cut energy costs in commercial and industrial buildings. Research from institutions including the Lawrence Berkeley National Laboratory has linked natural light exposure to improved accuracy and lower fatigue in workplace settings.
The key design variable is placement. A high-mounted industrial window run on the north or south elevation delivers diffused light deep into the building. Combine that with operable sashes and you get a passive system that handles two critical building functions at once.
Choosing the Right Industrial Window Glazing Material
Glass is the default assumption for most window specs. In industrial settings, though, it brings real drawbacks:
- Weight: Large glass panels add structural load and make replacement harder
- Breakage risk: Glass shatters under impact, creating safety hazards in active facilities
- Thermal performance: Even double-pane glass loses significant heat in cold climates
- Glare: Clear glass focuses direct sunlight, which creates glare near machinery or precision work
Structural cellular polycarbonate (SCP) addresses each of these issues. SCP panels are impact-resistant and lightweight. They also come in multi-wall forms that deliver R-values well above standard glazing. Furthermore, the cellular panel geometry diffuses incoming light. Instead of concentrating sunlight in hot spots, it spreads it evenly across the floor. That quality matters a lot in industrial spaces where glare near equipment affects both safety and output. For more on why SCP outperforms glass and fiberglass, see the polycarbonate difference.
Top-Hinged Industrial Windows and Rain-Resistant Ventilation
One of the most practical advances in industrial window design is the top-hinged operable sash. Traditional side- or bottom-hinged windows must close when it rains. Top-hinged systems, on the other hand, stay open.
This matters more than it may seem. Industrial facilities generate heat and fumes around the clock. Closing ventilation windows every time it rains forces workers back into stagnant, overheated air. A top-hinged industrial window tilts open at the top and deflects rainwater down the exterior face. As a result, ventilation continues through weather events without manual intervention.

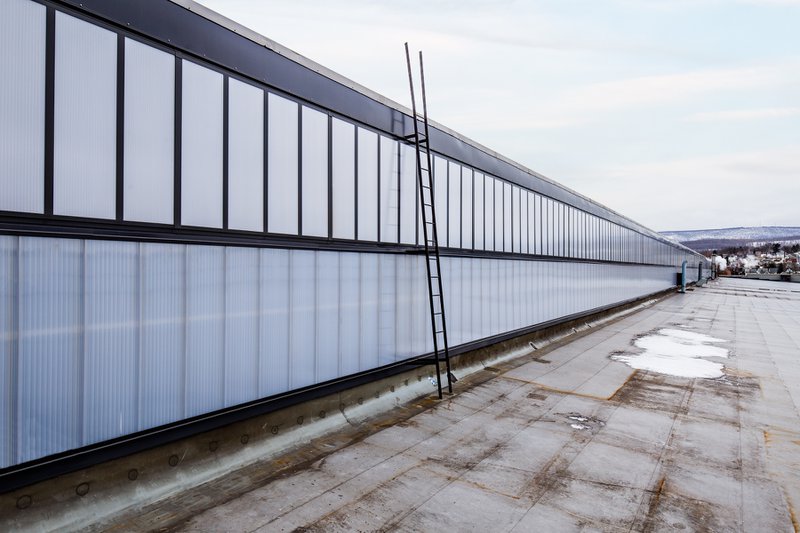

EXTECH's TECHVENT 5300 uses this principle. The system features a patented top-hinged design and can be built in continuous wings up to 150 feet long. That span eliminates multiple individual frames across a wide bay, simplifies installation, and reduces the number of seal points that can fail over time.
Industrial Window Framing and Thermal Movement
Industrial environments push glazing systems through wide temperature cycles. Polycarbonate expands and contracts at roughly 0.065 mm per meter per degree Celsius. A 40-foot panel across a 160-degree Fahrenheit design range can move up to 1.5 inches. Framing that does not account for this movement will bind, crack seals, or fail early.
Proper industrial window framing therefore requires:
- Deep glazing pockets to allow panel movement without disengagement
- Low-friction gaskets so panels slide freely without pulling seals out of position
- Controlled pinning to manage lateral loads without restricting thermal movement
- Weep design to drain moisture and ventilate panel cells
These details separate a system that holds up over a 20-year service life from one that leaks and degrades within a few years.
Industrial Window Retrofits and Lifecycle Value
Many industrial facilities still carry aging window systems: yellowed fiberglass panels, single-pane wire glass, or corroded steel frames that no longer seal. These systems lose light transmission as they degrade. They also fail to provide meaningful thermal resistance or ventilation control.

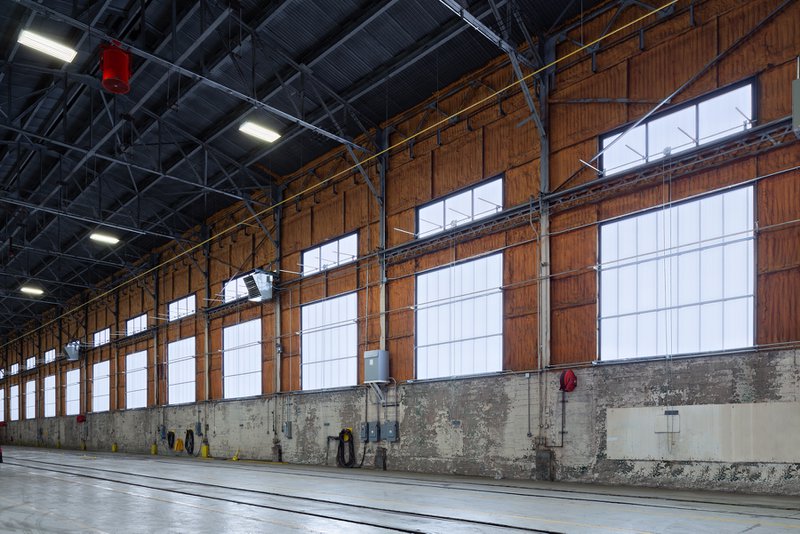

Replacing them with a modern industrial window system restores daylighting, improves air quality, and can reduce energy costs by cutting artificial lighting demand. EXTECH has completed industrial window renovations for the BNSF Argentine Yard and a Pittsburgh manufacturing facility, both of which replaced failed legacy systems with prefabricated polycarbonate assemblies.
Prefabrication shortens installation time and reduces field error. Components arrive pre-cut and pre-drilled, so crews spend less time on site and facilities return to full operation sooner.
Putting it all Together
Material choice, hinge geometry, framing detail, and placement strategy all determine whether an industrial window performs or becomes a maintenance burden. Facilities that get this right see lower energy costs, better air quality, and a building envelope built to last.
EXTECH engineers and fabricates industrial window systems designed for these demands. To discuss your project, contact the team directly.
