Large industrial facilities, manufacturing plants, and maintenance hangars share a common air quality problem. Heat, fumes, and particulates accumulate at the upper portion of the building where they are hardest to dilute. Standard windows, when they can open at all, create localized airflow that does not address upper-level stratification.
Fixed glazing does nothing to exhaust these buoyant contaminants. The facilities that manage this thermal problem most effectively use top-hinged windows positioned high on the wall or in clerestory locations. This opening geometry pulls accumulated heat and exhaust out while drawing fresh air from lower-level envelope openings.
How Top-Hinged Windows Handle Industrial Ventilation
A top-hinged window opens from the bottom outward, with the hinge axis at the top of the frame. That geometry directs the incoming airflow upward and along the ceiling, which is where the heat and contaminated air collect. The result is more effective upper-zone air exchange than a side-hung or sliding window of the same size can deliver. For facilities with high ceilings and significant heat or fume generation, that directional airflow characteristic makes top-hinged windows functionally distinct from standard operable glazing.
The Occupational Safety and Health Administration (OSHA) established strict industrial ventilation standards for airborne contaminant control, temperature management, and air exchange in industrial workplaces. Incorporating industrial top-hinged windows into a building envelope supports natural ventilation strategies that align with these regulatory frameworks. Consequently, it works well in facilities where mechanical ventilation alone cannot manage the volume of air exchange required.

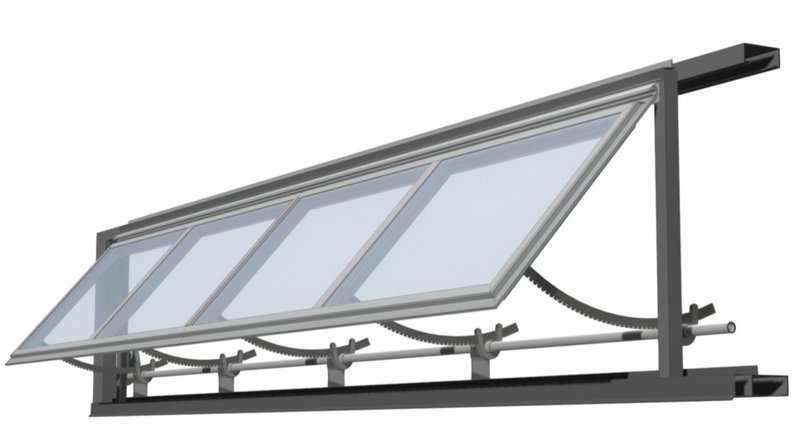

The TECHVENT 5300 from Exterior Technologies, Inc. (EXTECH) carries one design feature that distinguishes it from most operable window systems: it remains open during normal rainfall. A standard casement or awning window creates a water infiltration problem the moment rain begins. The TECHVENT 5300 geometry sheds water from the frame, so the ventilation opening stays functional through routine precipitation. For a facility that needs continuous airflow across shift changes and shifting weather conditions, this capability removes a real operational constraint.
TECHVENT 5300 Architectural Specifications
Individual TECHVENT 5300 units can be installed in punched openings or assembled into continuous runs extending up to 150 feet. This continuous installation option is significant for large-format industrial facades where the design calls for a band of ventilation windows across the full wall length. Each unit clips into a continuous hinge-bar, which means pre-assembled units install sequentially without separate framing operations per opening.
The TECHVENT system also accepts glass or polycarbonate glazing. For facilities where impact resistance is a priority, polycarbonate keeps the structural performance of the glazing in line with the rest of the building envelope. Meanwhile, facilities where visibility or aesthetics drive the project specification will find glass as a viable option.
Control options also add another layer of operational flexibility on the factory floor. The TECHVENT 5300 supports both manual and electronic control. Either way, the electronic systems can link with building heating, ventilation, and air conditioning (HVAC) controls. This integration automates ventilation responses to interior temperature or air quality readings. Official OSHA technical guidance on indoor air quality connects consistent, adequate ventilation directly to reduced occupational health risk. Building-linked controls support that consistency without requiring manual intervention.
Wind Load and Federal Compliance

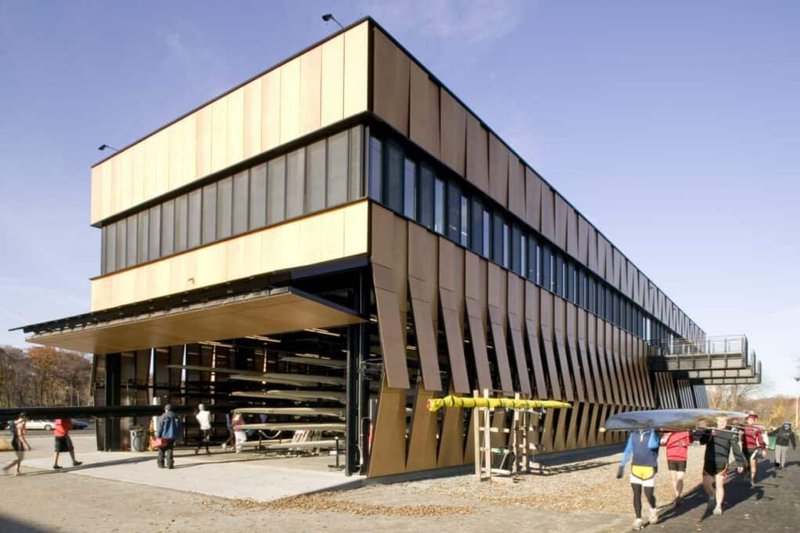

The Harry Parker Community Rowing Boathouse project in Brighton, Massachusetts, shows what electronic control looks like at a real installation scale. The building uses a custom 30-panel TECHVENT 5300 wall operated by a single drive mechanism, coordinating 30 individual opening panels through one actuator. As a result, this configuration met the structural wind calculations for the region while maximizing low-level and high-level air exchange.
TECHVENT 5300 systems also meet strict structural compliance requirements for military and federal facilities. The window tooling satisfies Unified Facilities Criteria (UFC) requirements, including United States Army Corps of Engineers (USACE), Naval Facilities Engineering Systems Command (NAVFAC), and Air Force standards. For facility managers and contractors working on aerospace or defense projects, this certification removes a specification barrier that standard commercial operable windows cannot clear.
The industrial window performance advantages that top-hinged systems deliver over standard glazing extend beyond natural ventilation. Specifically, natural light through high-mounted operable windows helps improve the worker wellness outcomes that facility managers track. These metrics include reduced absenteeism and improved alertness on the floor.
In addition, the dual function, ventilation, and daylighting in a single architectural opening make top-hinged windows a high-value specification. If you’re designing an industrial building envelope or replacing underperforming facade glazing, contact us today. We’ll be happy to share our expertise.
