Few glazing materials perform as effectively across as many building-envelope applications as architectural polycarbonate. It diffuses light without blocking it, handles structural loads that would challenge heavier glazing systems, and can be detailed for weather performance in wall, roof, and canopy configurations. For architects and specifiers evaluating daylighting strategy, facade design, or covered walkway systems, understanding the full range of architectural polycarbonate uses is foundational to making informed specification decisions.
What Makes Polycarbonate a Viable Envelope Material

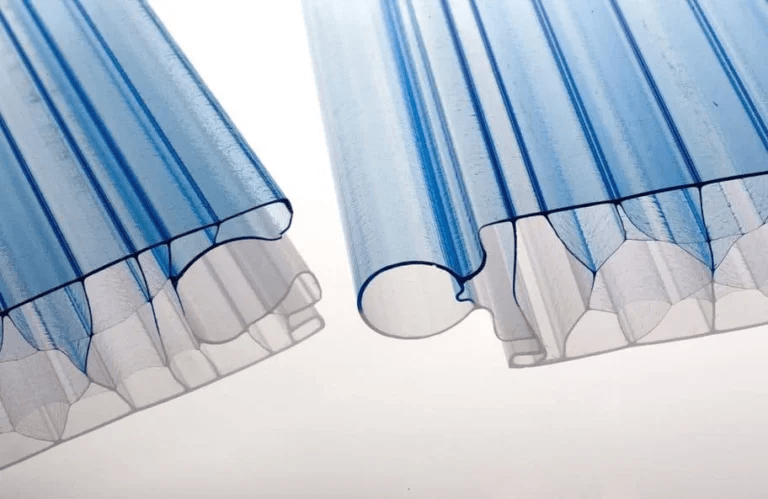

Polycarbonate is a thermoplastic glazing material formed through an extrusion process, which allows panels to be produced in near-continuous lengths and in multiwall configurations ranging from 25 mm to 50 mm thick. The multiwall cellular structure gives the material its combination of light weight and thermal resistance. According to the International Energy Conservation Code (IECC), glazing systems must meet maximum SHGC and minimum U-value requirements by climate zone, and polycarbonate panels are consistently competitive in this regard. A 25 mm polycarbonate system can achieve a U-factor of approximately 0.26 and an R-value of 3.84, outperforming a double-pane insulated glass unit of equivalent width.
Co-extruded UV-resistant coatings, applied to the panel surface during manufacturing, protect against yellowing and light transmittance loss over time. Quality products maintain color stability per ASTM D2244 after outdoor weathering exposure. These protections, combined with impact resistance up to 250 times greater than annealed glass, make polycarbonate a durable option for occupied buildings and high-exposure environments alike.
Structural cellular polycarbonate (SCP) takes this further. SCP panels are engineered to span between framing members under wind and snow loads, qualifying the material as a true structural glazing option rather than simply a cladding overlay. Learn more about the polycarbonate difference compared to glass and FRP alternatives.
Architectural Polycarbonate Uses in Translucent Walls and Facades

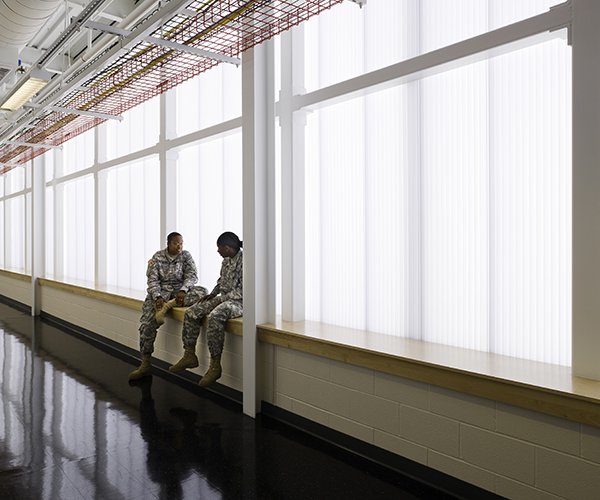

The most established architectural polycarbonate use is the translucent wall system, where panels span vertically between horizontal framing members to form a continuous light-transmitting facade. These systems deliver a light transmittance range of approximately 45 to 70 percent, distributing daylight evenly across interior spaces without the glare zones that clear glazing often produces near windows.
Translucent wall system built with multiwall polycarbonate panels are well-suited for:
- Manufacturing and warehouse facilities where diffuse daylighting reduces dependence on artificial lighting
- Athletic and recreation centers where glare-free natural light supports visual comfort across large floor plates
- Education and healthcare buildings where consistent light quality and occupant comfort are design priorities
- Institutional facades where a luminous, low-maintenance exterior appearance is a project goal
Tinting and panel color selection allow designers to modulate light transmission and solar heat gain independently of panel thickness, giving specifiers meaningful control over the performance envelope without changing the structural configuration.

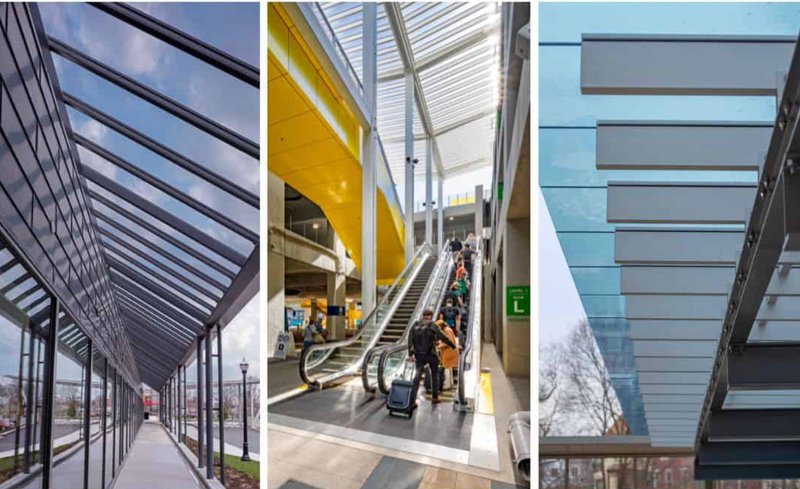

Canopy and Walkway Applications
Architectural polycarbonate uses extend naturally into horizontal and sloped configurations, where weather resistance, water management, and structural load capacity become the primary concerns. Standing-seam polycarbonate canopy systems can span significant distances, with panels reaching up to 54 feet in length, eliminating the intermediate joints that introduce leak risk in shorter-panel assemblies.
For transit stations, building entries, and outdoor covered walkways, polycarbonate canopy systems provide weather protection while maintaining a visually light, translucent overhead plane. This is a meaningful design distinction compared to metal roofing, which blocks daylight entirely, and glass, which adds substantial weight at scale.
Wind uplift is a major consideration in overhead applications. Canopy framing must account for negative pressure loading, which typically governs connection detailing between panel and frame as much as gravity or snow loads do. Long-span, high-load configurations are also available for environments with heavy snow accumulation or sustained wind exposure.
Skylights and Roof Glazing
In roof applications, polycarbonate provides a practical path to daylighting large commercial and industrial floor plates that cannot be served by perimeter windows alone. Because polycarbonate weighs a fraction of glass at equivalent thicknesses, the structural support requirements for commercial skylight systems are reduced, with direct implications for framing costs and installation complexity.
Diffusion is particularly valuable in skylight applications. A minimally diffused panel allows direct sunlight to track across a space throughout the day, creating glare and thermal discomfort in occupied areas below. Panels with higher diffusion ratings scatter incoming light and maintain more consistent illuminance across the interior regardless of solar angle. This distinction matters most in offices, classrooms, and hospital corridors positioned beneath a roof monitor or clerestory. The Holbrook Pre K-12 facility in Massachusetts, for example, achieved 34 percent energy savings over baseline through a combination of polycarbonate clerestory glazing and reduced reliance on artificial lighting.
Thermal Movement and Framing Integration
One of the most critical details in any polycarbonate installation is accommodation of thermal expansion. A 40-foot polycarbonate sheet can experience approximately 1.5 inches of dimensional change across a 50-degree Celsius temperature differential. Framing systems that do not account for this movement will stress panel edges, compromise gasket integrity, and eventually allow water infiltration.
Properly engineered aluminum framing for architectural polycarbonate uses includes:
- Deep glazing pockets that retain panels through their full range of thermal movement
- Low-friction gaskets that allow panels to slide without pulling free from the frame
- Pressure plates sized to apply consistent contact force without restricting panel movement
- Integrated weep systems that drain incidental moisture before it reaches the building interior
This is why framing selection is inseparable from panel selection. The two components function as a system, and their compatibility determines long-term performance. The LEED certification framework also recognizes polycarbonate glazing systems for their contribution to daylighting credits and thermal performance, which adds another specification consideration for projects pursuing sustainability targets.
Specifying Architectural Polycarbonate for the Right Application
No single polycarbonate specification fits all envelope conditions. Panel thickness affects insulation value and light transmittance in opposite directions: thicker panels provide better thermal resistance but reduce light transmission. Resin additives used to lower solar heat gain similarly reduce transmittance. These tradeoffs are predictable, but they require early coordination between design intent and material performance to resolve correctly.
The evolution of polycarbonate in architecture over the past several decades reflects how the material has adapted to increasingly demanding performance requirements. Today, architectural polycarbonate uses span facades, canopies, skylights, and specialty applications across building types, climates, and structural conditions.
EXTECH has developed translucent wall, canopy, and skylight systems around structural cellular polycarbonate for more than 50 years, with custom aluminum framing engineered to manage thermal movement, water drainage, and structural loads across a wide range of project conditions. For projects where daylighting, weather performance, and design flexibility all need to work together, EXTECH's team provides design-assist support from schematic design through installation. Contact us for more information.
