Architects and specifiers often treat daylighting as secondary to structure and weather resistance. In practice, a well-specified translucent wall system addresses all three at once. It admits diffused natural light, manages solar heat gain, and integrates directly into the structural framing without forcing the trade-offs that opaque cladding or conventional glass curtain wall typically creates.
No two projects share the same daylighting targets, load conditions, or aesthetic intent. As a result, customization in a translucent wall system is not simply a color or finish choice. Instead, it is a series of connected specification decisions that determine how the system performs over its full service life.
What a Translucent Wall System Does in the Building Envelope

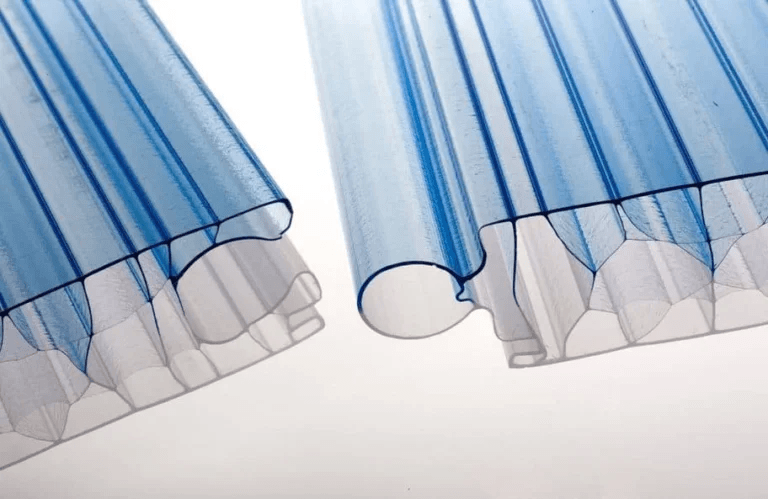

A translucent wall system replaces opaque cladding with a glazing material, usually structural cellular polycarbonate (SCP), housed within a custom aluminum framing system. Rather than transmitting direct sunlight, the panels filter and diffuse daylight. This spreads light more evenly across interior spaces and avoids the glare and hot spots common with clear glass.
Beyond daylighting, the system also functions as a thermal barrier, an air seal, and a weather-resistive assembly. Polycarbonate panels offer strong insulation across standard thickness ranges. A 40mm panel typically achieves R-4 (U-0.25), while a 50mm panel reaches R-5 (U-0.19). By comparison, a double-pane insulated glass unit of similar width averages around R-2 (U-0.48). That thermal advantage is meaningful in projects where HVAC load reduction is part of the performance strategy.
Translucent Wall System Specification: Key Performance Trade-Offs
Customizing a translucent wall system starts with understanding that performance characteristics are linked. Changing one variable typically shifts others. The most common specification decisions involve:
- Panel thickness: Thicker panels deliver better insulation but reduce visible light transmission. A 50mm panel offers more thermal resistance than a 40mm panel, but the 40mm panel admits more light. The right choice depends on the project's climate zone and daylighting targets.
- Glazing color and opacity: Opal-colored polycarbonate delivers moderate to high diffusion. It spreads light evenly and reduces glare. Clear glazing, by contrast, maximizes light transmission but works best only in spaces where direct light and higher solar heat gain are acceptable.
- SHGC targets: For vertical wall applications, building codes in most climate zones require an SHGC between 0.25 and 0.45. Lower SHGCs are typically required in warmer regions. Achieving a lower SHGC often means accepting reduced light transmission, so specifiers need to resolve this trade-off early in the design process.
- Resin additives: Fire-resistance additives can affect both U-value and light transmission. Therefore, flammability requirements must be factored into the glazing specification alongside thermal and optical performance goals.
Working with the system manufacturer before the specification is finalized is the most reliable way to resolve these trade-offs. Doing so also avoids costly redesigns later in the project.
How Framing Design Affects Translucent Wall System Performance
The aluminum framing that holds polycarbonate panels is not a passive component. It directly controls how the system responds to thermal cycling, structural loads, and water infiltration. Polycarbonate expands at a linear rate of 0.065 mm per meter per degree Celsius. Consequently, a 12-meter panel can shift nearly 39mm across a 50-degree temperature differential. Framing that does not account for this movement will stress the glazing seals and, over time, compromise water tightness.
Well-engineered framing systems manage this movement through:
- Deep glazing pockets that allow panels to move without disengaging from the frame
- Low-friction gaskets that flex with thermal cycling rather than pulling away from the seal
- Pressure plates that maintain consistent contact without over-tightening against the panels
Systems designed as fully-weeped assemblies handle condensation and incidental water at the framing level. This prevents moisture from migrating into the building interior.
Span capability is another variable that shapes the framing design. A 40mm panel in a tongue-and-groove profile spans roughly 4 to 6 feet without horizontal support members. A 50mm panel extends that range to 6 to 9 feet. For taller walls or high-load conditions, reinforcing bars inserted through the panel cells can increase spanning capability further. Understanding these limits early determines how much visible framing the design will require.
Choosing the Right Translucent Wall System Configuration
Different configurations suit different building programs. Selecting the right type from the start simplifies the rest of the specification process. For reference, common options include:
- Tongue-and-groove interlocking systems: These eliminate vertical mullions for a continuous, clean wall surface. They suit mid-span applications where thermal performance and visual simplicity both matter.
- Curtain wall systems with polycarbonate infill: These handle monumental facades with higher structural demands. The framing carries significant wind and seismic loads, while the polycarbonate panels manage daylighting and thermal performance.
- Screen wall systems: These add architectural depth and an extra layer of solar shading. They work well when glare control needs reinforcing beyond what the glazing alone can provide.

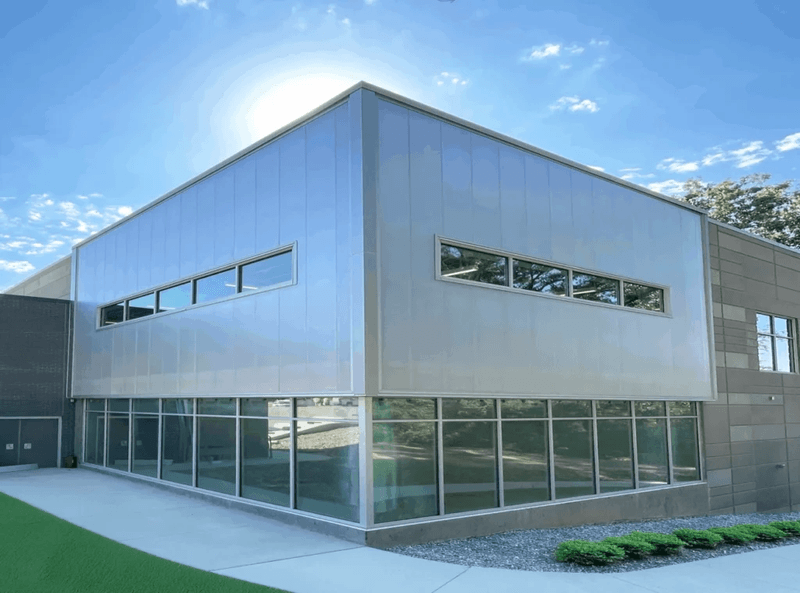

- Dual-wall systems: These target extreme climate conditions where maximum insulation is the primary driver. The air space between layers substantially improves overall thermal resistance.
Each configuration can be further tailored through panel color, thickness, framing profile, and finish. Because all components arrive pre-cut and pre-drilled, field labor is reduced and installation accuracy improves. For more on how these systems fit within a broader building envelope strategy, the framing and glazing decisions discussed here carry through to every project type.
Translucent Wall System Applications Across Building Types

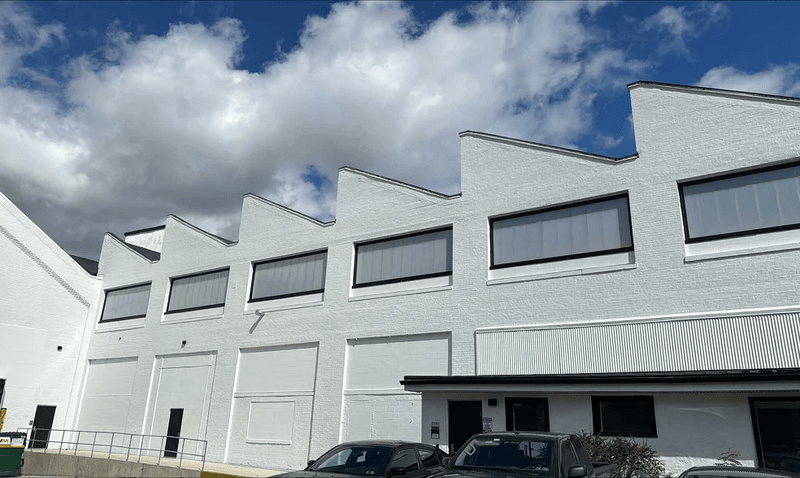

A translucent wall system is not limited to a single market or building type. At the Re:Build Manufacturing Facility in New Kensington, Pennsylvania, over 13,500 square feet of LIGHTWALL 3440 replaced failing windows in a major industrial renovation. The project earned recognition for bringing a century-old building up to current energy standards. At the Holbrook Pre K-12 Facility in Massachusetts, a LEED Gold-certified school used LIGHTWALL 3440 clerestory windows to achieve 34% energy savings over baseline. Reduced artificial lighting demand contributed directly to that result.
Both examples show how the same translucent wall system type, adjusted for the specific load and performance requirements of each building, can serve industrial and educational programs equally well. The specification logic is consistent even when the building type and scale differ.
Working with EXTECH to Customize Your Translucent Wall System
EXTECH's design-assist model brings architects and contractors into the process during schematic design. That early engagement allows the team to identify the right panel configuration, framing profile, and performance targets before the specification locks. Custom aluminum extrusions can be developed for non-standard conditions, and factory fabrication ensures components arrive site-ready. For more detail on how structural cellular polycarbonate behaves in these systems, EXTECH's technical resources can help inform specification decisions from the start.
For specifiers evaluating a translucent wall system for a new project or a retrofit, the variables covered here, panel thickness, glazing opacity, SHGC, span capacity, and framing design, are the decisions that determine long-term performance. Getting those decisions right early, with manufacturer input, is what separates a system that performs as specified from one that requires costly correction down the road. To learn more about commercial daylighting system options or to start a project conversation, reach out to EXTECH's engineering team directly.
